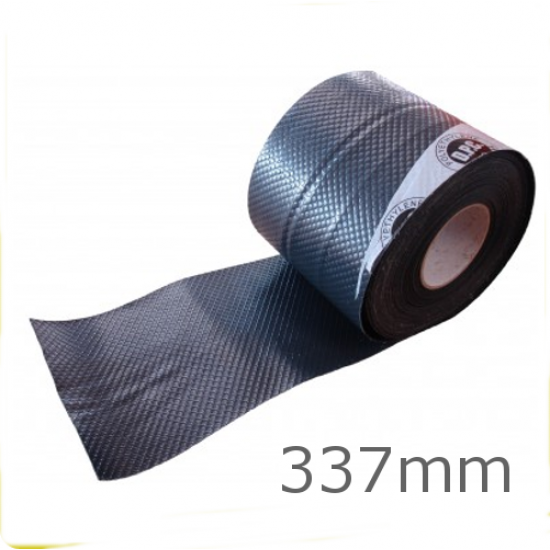

337mm Damp Proof Course - DPC

337mm Damp Proof Course - DPC
337mm Damp Proof Course - DPC
Price: £11.58 (£13.90 inc VAT)
  • Product Code: A1-5641
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: DPC337
  • Weight: 3,440.00g
Show other widths

337mm Damp Proof Course - DPC

Length: 30000mm
Width: 337mm
Weight: 3440g
337mm Damp Proof Course - DPC provides damp proof protection, preventing ingress of external moisture. Suitable for brick, block, stone or concrete walls. Suitable for vertical and horizontal applications.



Specification
  • 500mu.
  • Produced to BS 6515:84.
  • Suitable for withstanding a compressive load of up to 2.5 N/mm2 as long as no lateral load is applied.
Installation
  • Installation should be according to the code of practice CP102:1973 and normal DPC good practice procedures set in BS 5628 should be followed.
  • For internal walls, DPC should be installed at the base of load bearing walls and linked with any adjoining DPM.
  • The DPC should be at least the width the partition it is applied to and lapped by at least 100mm when two DPCs are joined and linked with any adjoining DPM.
    Brand: TECO Model and Size: WM75x275
    Delivery Time: 2 - 4 days
    75mm x 275mm Welded Masonry Joist Hanger is designed to support 275mm high timber joist. The joist hanger's actual height is 265mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to ti..
    £6.18
    £7.42 inc VAT
    Add to Cart
    Brand: TECO Model and Size: FHMR47X225R150
    Delivery Time: In stock, 1-2 days
    Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
    £4.45
    £5.34 inc VAT
    Add to Cart
    Brand: TECO Model and Size: HD1000F
    Delivery Time: In stock, 1-2 days
    Galvanised Heavy Duty Restraint Strap 1000mm Flat is designed for lateral and horizontal restraint (as in roof trusses). The straps are produced from edge coated galvanised mild steel, also available in stainless steel. They are designed for 6mm and 25mm offset centres holes.INSTALLAT..
    £2.83
    £3.40 inc VAT
    Add to Cart
    Brand: TECO Model and Size: WM44x275
    Delivery Time: 2 - 4 days
    44mm x 275mm Welded Masonry Joist Hanger is designed to support 275mm high timber joist. The joist hanger's actual height is 265mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to ti..
    £4.49
    £5.39 inc VAT
    Add to Cart
    Brand: TECO Model and Size: CSHBZPM6x25
    Delivery Time: In stock, 1-2 days
    6mm - 25mm length Zinc Plated Coach Bolt. Cup Square Hex Bolts are also referred to as Coach Bolts or Carriage Bolts. They have a dome head with a square underneath for locking into the timber. Bright zinc plated or hot dipped spun galvanised to EN ISO 1461:2009 FeaturesSupplied complete w..
    £31.80
    £38.16 inc VAT
    Add to Cart
    Brand: TECO Model and Size: WR100X250R100
    Delivery Time: 2 - 4 days
    100mm x 250mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but ..
    £6.98
    £8.38 inc VAT
    Add to Cart
