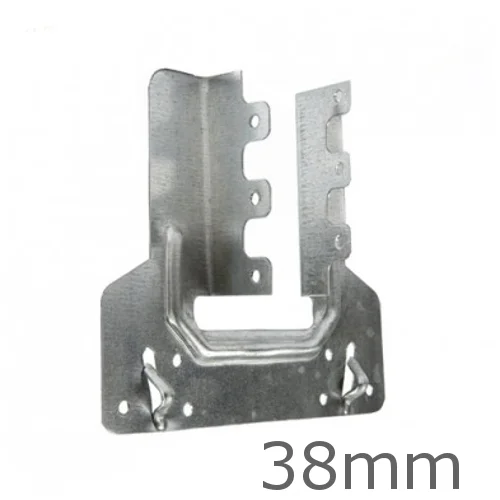

38mm Woody Truss Clip
38mm Woody Truss Clip
Price: £0.31 (£0.37 inc VAT)
- Product Code: A1-5772
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: TCW38
- Weight: 80.00g
38mm Woody Truss Clip
Width: 38mm
Weight: 80g
38mm Woody Truss Clips are used to fix trusses, girders and rafters to the wall plate. Installation prongs on the truss clip to aid location. These truss clips can withstand superior design loads. Made from galvanised steel EN 10346 DX51D Z275. Tested by CERAM Research Ltd. Long term safe working load = 3.18 kN.
Installation
- All holes should be nailed using 12 nos 30 x 3.75 square twist nails or equivalent.
Truss-Clips_data_sheet.pdf
