Restraint Straps and Banding - Types and Application


Where floors, joists, rafters and flat roof trusses are built in or supported by hangers off the wall, its required to use lateral restraint by tension straps in accordance with the provisions in BS EN 1996-2:2006 and Building Regulation requirements. Lateral restraint straps are required at floor, rafter or flat roof member levels and in pitched roofs at ceiling joist levels. The masonry walls would also benefit from the lateral restraint by restricting movement of the separating walls and gable walls.




Installation

  • Ensure all restraint straps fit tightly against the masonry wall face.
  • Must be turned down at least 100mm and be tight against the face of the wall or cavity wall.

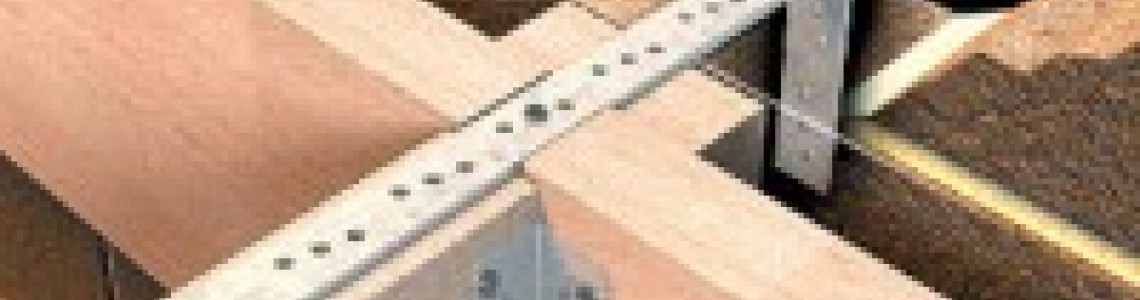

Timber floor to wall



Rafter or truss fixed to gable wall

Light duty and heavy duty restraint straps are available at insulationshop.co at competitive prices.

There are also type of a holding down strap that is used between cavity walls, or in new added wall to provide restraint against uplift to timber frames -- works as vertical restraint strap. The restraint straps can be used for vertical applications, such as fix and hold a beam, wall plate to masonry.



Light duty and heavy duty restraint straps are available at insulationshop.co at competitive prices.

You can also buy galvanised steel and stainless steel builder's fixing bands that are used to for joist strutting, frame and sill fixing, fencing repairs, hanging ductwork and other construction applications. with punched holes for fixing.
