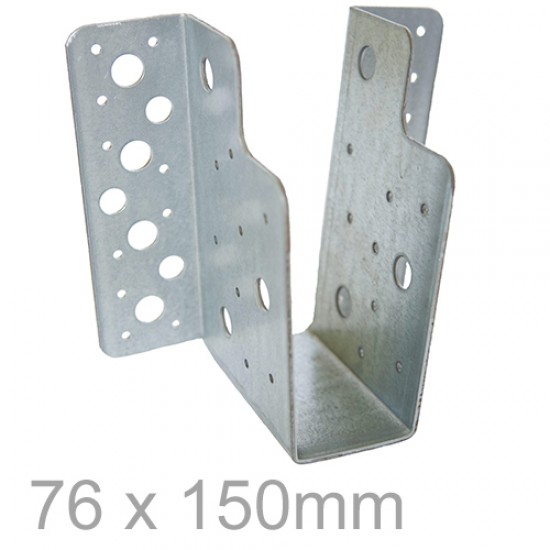

76x150mm Heavy Duty Face Fix Joist Hanger

76x150mm Heavy Duty Face Fix Joist Hanger
76x150mm Heavy Duty Face Fix Joist Hanger
Price: £4.49 (£5.39 inc VAT)
  • Product Code: A1-5190
  • Delivery Time: 2 - 3 Days
  • Brand: TECO
  • Model and Size: HWTNT76
  • Weight: 831.00g
Show other widths

76x150mm Heavy Duty Face Fix Joist Hanger

Width: 76mm
Height: 150mm
Thickness: 2.5mm
Weight: 831g
76mm x 150mm Heavy Duty Face Fix Joist Hanger is especially designed for timber to timber, concrete or masonry fixings.  The hanger is produced from 2.5mm thick pre-galvanised mild steel and in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275.



    SPECIFICATION

    • All hangers come up to 150mm deep
    • M10 & M12 bolt holes for added versatility
    • 95mm bearing
    • Nominal depth 150mm
    • Available in standard or with concealed flanges
    • Available also in stainless steel.

    FIXING INSTRUCTIONS for 76x150mm Heavy Duty Face Fix Joist Hanger

    • In order of avoiding rotation, the hanger should exceed the half of the supported member depth.
    • Can be fully nailed, coach screwed and bolted.
    • 3no. M10 x 75mm Coach Screws on either side and the supported joist bolted through the hanger using an M12 Bolt
    • The safe working load also depends on the block strength and used fixings.
