Joist Hangers
Joist hangers are designed to provide support underneath the timber
beam, joist or rafter to provide a strong connection, to resist
downward force and to provide structural stability. Joist hangers are
made of pre-galvanised mild steel, but can also be ordered from
stainless steel. Depending on the load and and the type of the joist,
the joist hanger made from galvanised steel thickness 0.8mm to 3.0mm or
more.
Some joist hangers would work with masonry
walls. The joist hanger will keep your joists solidly and permanently
connected. If you install them properly, joist hangers will keep your
decks and floors strong as wood dries, twists, shrinks and ages.
Joist
hangers come in many sizes to support different cross dimensional sizes
of timber joists. The galvanized coating would allow the hanger to be
used outdoors. Most joist hangers are common face-mounting type, and
there are specialized hangers available for joists that run at an
angle. Joist hangers speeds up your construction time, so they are a
real bargain.

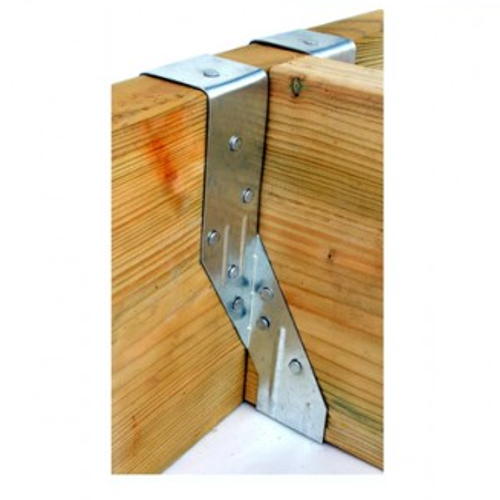

Wood to wood Joist Hangers
Face fixed joist hangers are provided with fixing holes to allow you to fix them to the face of the beam or wall. Some have longer legs that can be bent over or wrapped over the beam or the wall. These legs allow fixing from the top giving extra support. Face fixed joist hangers can be light duty or heavy duty.
tag_install.png)

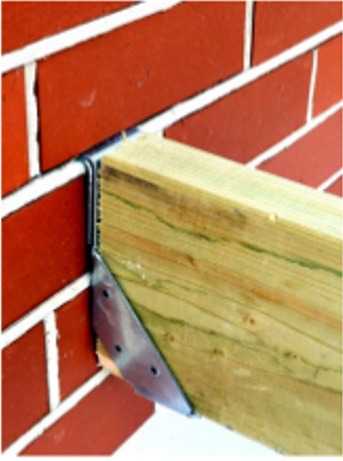

Masonry Joist Hangers
Masonry joist hangers are usually welded for strength. They are designed to be placed either on top of a wall, or wrapped around the wall or fixed into a joint in the wall. The return adds additional lateral support by wrapping around the back of the masonry.
Saddle Joist Hangers
Welded Saddle hangers are designed to hang over both sides of a beam, joist or a wall in order to continue a joist line in the same direction.
Note:
- Choose the correct hanger that fits the joist. Do not use a larger hanger than the size of the joist.
- Fill all the holes in each joist hanger with the proper size nail. If the wrong nails are used at a joist hanger, it won't perform as intended. Nails matter. Don't use drywall screws to install joist hangers, as they don't have the toughness to support joist loads.
Choose subcategory or scroll down to see products
CHOOSE MANUFACTURERS
Brand: TECO
Model and Size: MMINI - 38x72
Delivery Time: In stock, 1-2 days
38x72mm Mini Mini Joist Hanger is a timber to timber joist hanger suitable for light duty applications such as trimmers, ceiling joists and decking. The hanger is produced from 1mm thick pre-galvanised mild steel. The tag on the base of the hanger helps avoid rotation and aids fast, accurate lo..
£0.53
£0.64 inc VAT
Brand: TECO
Model and Size: MFM - 38x101
Delivery Time: In stock, 1-2 days
38mm x 101mm Multifunctional Mini Joist Hanger is a Face Fix Joist Hanger, produced from 1.2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19..
£1.73
£2.08 inc VAT
Brand: TECO
Model and Size: WM44x100
Delivery Time: 2 - 4 days
44mm x 100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timber or..
£1.90
£2.28 inc VAT
Brand: TECO
Model and Size: WM50x100
Delivery Time: 2 - 4 days
50mm x 100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£1.90
£2.28 inc VAT
Brand: TECO
Model and Size: WM63x100
Delivery Time: 2 - 4 days
63mm x 100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£4.13
£4.96 inc VAT
Brand: TECO
Model and Size: WM75x100
Delivery Time: 2 - 4 days
75mm x 100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£4.20
£5.04 inc VAT
Brand: TECO
Model and Size: WM90x100
Delivery Time: 2 - 4 days
90mm x 100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£4.33
£5.20 inc VAT
Brand: TECO
Model and Size: WM100x100
Delivery Time: 2 - 4 days
100mm x100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£4.33
£5.20 inc VAT
Brand: TECO
Model and Size: WM125x100
Delivery Time: 2 - 4 days
125mm x 100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the tim..
£4.45
£5.34 inc VAT
Brand: TECO
Model and Size: WM132x150
Delivery Time: 2 - 4 days
132mm x 150mm Welded Masonry Joist Hanger is designed to support 150mm high timber joist. The joist hanger's actual height is 140mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to t..
£8.01
£9.61 inc VAT
Brand: TECO
Model and Size: WM150x150
Delivery Time: 2 - 4 days
150mm x 150mm Welded Masonry Joist Hanger is designed to support 150mm high timber joist. The joist hanger's actual height is 140mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many t..
£8.33
£10.00 inc VAT
Guide Price
Brand: TECO
Model and Size: MINI - 38x100
Delivery Time: In stock, 1-2 days
38x100mm Woody Mini Joist Hanger is produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. Also available in stainless steel. The hanger includes a base tag that can significantly contribute to faster and more accura..
Guide Price: £0.58
£0.70 inc VAT
Brand: TECO
Model and Size: STD - 38x285
Delivery Time: In stock, 1-2 days
38x285mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..
£0.95
£1.14 inc VAT
Brand: TECO
Model and Size: STD - 44x282
Delivery Time: In stock, 1-2 days
44x282mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..
£0.95
£1.14 inc VAT
Brand: TECO
Model and Size: STD - 63x300
Delivery Time: In stock, 1-2 days
63x300mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..
£1.10
£1.32 inc VAT
Brand: TECO
Model and Size: STD - 47x277
Delivery Time: In stock, 1-2 days
47x277mm Woody Standard Joist Hanger is a timber to timber joist hanger produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is also available in stainless steel. The hanger includes a base tag, which can significant..
£0.95
£1.14 inc VAT

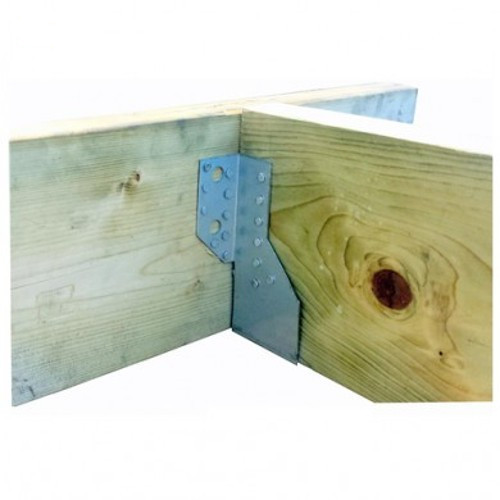

Brand: TECO
Model and Size: MFT38/346BA - 38x154
Delivery Time: In stock, 1-2 days
38mm x 154mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base locati..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT44/346BA - 44x151
Delivery Time: In stock, 1-2 days
44mm x 151mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT47/346BA - 47x150
Delivery Time: In stock, 1-2 days
47mm x 150mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT50/346BA - 50x148
Delivery Time: In stock, 1-2 days
50mm x 148mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT63/346BA - 63x142
Delivery Time: In stock, 1-2 days
63mm x 142mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT76/346BA - 76x135
Delivery Time: In stock, 1-2 days
76mm x 135mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It inclu..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT90/346BA - 90x128
Delivery Time: In stock, 1-2 days
90mm x 128mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It inclu..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT100/346BA - 100x123
Delivery Time: In stock, 1-2 days
100mm x 123mm Multifunctional Joist Hanger 100 x 123mm is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It in..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT125/346BA - 125x110
Delivery Time: In stock, 1-2 days
125mm x 110mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base ..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: MFT150/346BA - 150x98
Delivery Time: In stock, 1-2 days
150mm x 98mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base l..
£2.25
£2.70 inc VAT
Brand: TECO
Model and Size: HWTNT38
Delivery Time: 2 - 3 Days
38mm x 150mm Heavy Duty Face Fix Joist Hanger is especially designed for timber to timber, concrete or masonry fixings. The hanger is produced from 2.5mm thick pre-galvanised mild steel and in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. SPECIFICATIONAl..
£4.18
£5.02 inc VAT
Brand: TECO
Model and Size: FHM47/100
Delivery Time: In stock, 1-2 days
47mm x 100mm Single Piece Joist Hanger are designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. They are also suitable for many timber to timber applications by fixing the masonry flange securely to the timber or to steel beams using ap..
£1.80
£2.16 inc VAT
Brand: TECO
Model and Size: FHMR100
Delivery Time: 2 - 4 days
Single Piece Masonry Hanger Lock Plate is an additional element to use with the FHM Single Piece Joist Hanger and the WM Welded Masonry Joist Hanger. This plate is easily be transformed into a hook over joist hanger. No special tools or rivets are required. Just insert Lock Plate at 90, rotate ..
£0.74
£0.89 inc VAT
Brand: TECO
Model and Size: WR44X200R100
Delivery Time: 2 - 4 days
44mm x 200mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
£4.60
£5.52 inc VAT
