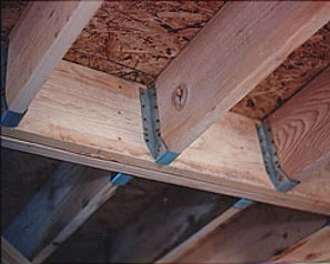

Joist Hangers
Joist hangers are designed to provide support underneath the timber
beam, joist or rafter to provide a strong connection, to resist
downward force and to provide structural stability. Joist hangers are
made of pre-galvanised mild steel, but can also be ordered from
stainless steel. Depending on the load and and the type of the joist,
the joist hanger made from galvanised steel thickness 0.8mm to 3.0mm or
more.
Some joist hangers would work with masonry
walls. The joist hanger will keep your joists solidly and permanently
connected. If you install them properly, joist hangers will keep your
decks and floors strong as wood dries, twists, shrinks and ages.
Joist
hangers come in many sizes to support different cross dimensional sizes
of timber joists. The galvanized coating would allow the hanger to be
used outdoors. Most joist hangers are common face-mounting type, and
there are specialized hangers available for joists that run at an
angle. Joist hangers speeds up your construction time, so they are a
real bargain.

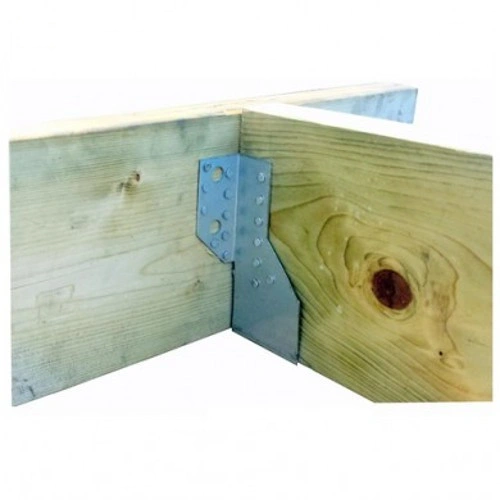

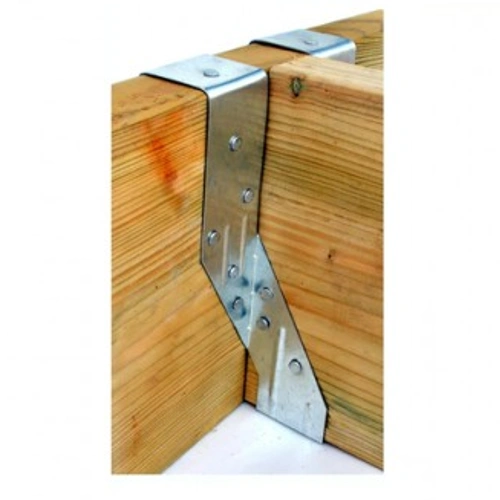

Wood to wood Joist Hangers
Face fixed joist hangers are provided with fixing holes to allow you to fix them to the face of the beam or wall. Some have longer legs that can be bent over or wrapped over the beam or the wall. These legs allow fixing from the top giving extra support. Face fixed joist hangers can be light duty or heavy duty.
tag_install.png)

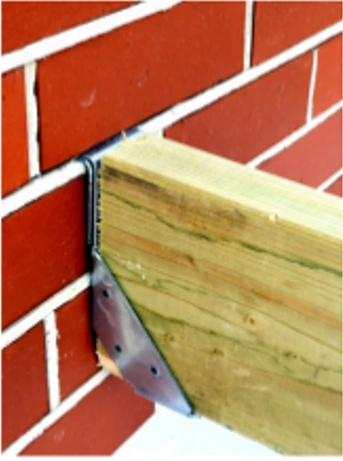

Masonry Joist Hangers
Masonry joist hangers are usually welded for strength. They are designed to be placed either on top of a wall, or wrapped around the wall or fixed into a joint in the wall. The return adds additional lateral support by wrapping around the back of the masonry.
Saddle Joist Hangers
Welded Saddle hangers are designed to hang over both sides of a beam, joist or a wall in order to continue a joist line in the same direction.
Note:
- Choose the correct hanger that fits the joist. Do not use a larger hanger than the size of the joist.
- Fill all the holes in each joist hanger with the proper size nail. If the wrong nails are used at a joist hanger, it won't perform as intended. Nails matter. Don't use drywall screws to install joist hangers, as they don't have the toughness to support joist loads.
Choose subcategory or scroll down to see products
CHOOSE MANUFACTURERS
Brand: TECO
Model and Size: WR50X200R100
Delivery Time: 2 - 4 days
50mm x 200mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
£4.60
£5.52 inc VAT
Brand: TECO
Model and Size: WR63X200R100
Delivery Time: 2 - 4 days
63mm x 200mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
£5.41
£6.49 inc VAT
Brand: TECO
Model and Size: WR75X200R100
Delivery Time: 2 - 4 days
75mm x 200mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
£5.55
£6.66 inc VAT
Brand: TECO
Model and Size: WR90X200R100
Delivery Time: 2 - 4 days
90mm x 200mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but a..
£5.70
£6.84 inc VAT
Brand: TECO
Model and Size: WR100X200R100
Delivery Time: 2 - 4 days
100mm x 200mm Welded Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard, but ..
£5.70
£6.84 inc VAT
Brand: TECO
Model and Size: FHMST215
Delivery Time: 2 - 4 days
Single Piece Masonry Hanger Lock Plate is an additional element to use with the FHM Single Piece Joist Hanger and the WM Welded Masonry Joist Hanger. This plate is easily be transformed into a hook over joist hanger. No special tools or rivets are required. Just insert Lock ..
£1.13
£1.36 inc VAT
Brand: TECO
Model and Size: WS63x200S100
Delivery Time: 2 - 4 days
Straddle: 100mm63mm x 200mm Masonry Straddle Joist Hangers are designed for similar applications and installation as the standard Masonry Joist Hangers. The Masonry Straddle hanger is two hangers joined together by a plate on the masonry flange to enable exact alignment of two joists positioned dire..
£11.08
£13.30 inc VAT
Brand: TECO
Model and Size: WS75x200S100
Delivery Time: 2 - 4 days
Straddle: 100mm75mm x 200mm Masonry Straddle Joist Hangers are designed for similar applications and installation as the standard Masonry Joist Hangers. The Masonry Straddle hanger is two hangers joined together by a plate on the masonry flange to enable exact alignment of two joists positioned..
£11.41
£13.69 inc VAT
Brand: TECO
Model and Size: TIJ-TI - 45x240mm
Delivery Time: In stock, 1-2 days
45x240mm Top Fix I-Joist Hanger is an innovative new backer free Joist Hanger to suit solid engineered wood products as well as I-Joists. It is engineered to combine maximum load carrying capacity with easy hands-free site installation, at minimum cost. Long term safe working load = ..
£1.69
£2.03 inc VAT
Brand: TECO

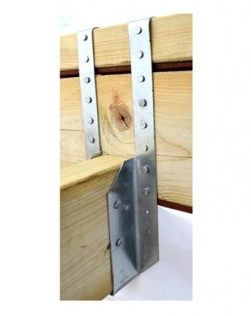

Model and Size: LL - 38x450
Delivery Time: In stock, 1-2 days
38x450mm Woody Long Leg Joist Hanger is produced from 1.5mm thick pre-galvanised mild steel produced in accordance to EN 10346 DX51D+Z275 with 50mm joist bearing. This timber to timber joist hanger designed for use in Loft Conversions where the hanger extends below the support. ..
£3.36
£4.03 inc VAT
Brand: TECO
Model and Size: FHMR47X100R100
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£3.06
£3.67 inc VAT
Brand: TECO
Model and Size: FHMR47X125R100
Delivery Time: In stock, 1-2 days
The Masonry Return Joist Hangers are designed for similar applications and installation as the standard Masonry Joist Hangers. The return adds additional lateral support by wrapping around the back of the masonry or timber. They have a 25mm drop on the return flange as standard but many special..
£3.26
£3.91 inc VAT
Brand: TECO
Model and Size: FHMR47X150R100
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£3.36
£4.03 inc VAT
Brand: TECO
Model and Size: FHMR47X175R100
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£3.56
£4.27 inc VAT
Brand: TECO
Model and Size: FHMR47X200R100
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£3.70
£4.44 inc VAT
Brand: TECO
Model and Size: FHMR47X225R100
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£3.95
£4.74 inc VAT
Brand: TECO
Model and Size: FHM50/100
Delivery Time: In stock, 1-2 days
50mm x 100mm Single Piece Joist Hanger are designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. They are also suitable for many timber to timber applications by fixing the masonry flange securely to the timber or to steel beams using ap..
£1.80
£2.16 inc VAT
Brand: TECO
Model and Size: TIJ-TI - 50x240mm
Delivery Time: In stock, 1-2 days
50x240mm Top Fix I-Joist Hanger is an innovative new backer free Joist Hanger to suit solid engineered wood products as well as I-Joists. It is engineered to combine maximum load carrying capacity with easy hands-free site installation, at minimum cost. Long term safe working load = ..
£1.69
£2.03 inc VAT
