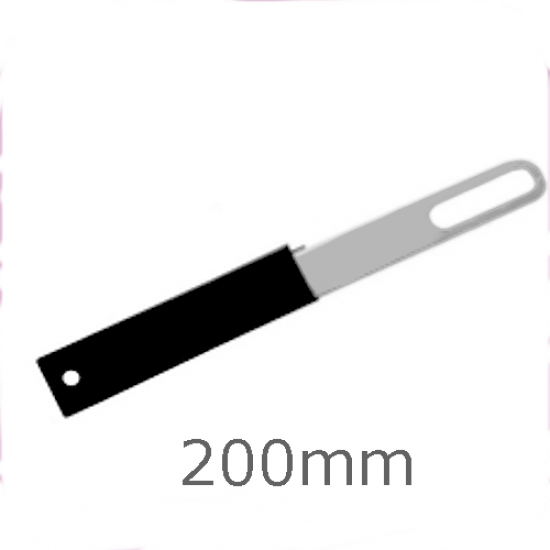

200mm Movement Tie with Sleeve - pack of 10
200mm Movement Tie with Sleeve - pack of 10
Price: £13.00 (£15.60 inc VAT)
- Product Code: A1-5526
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: MT200
- Weight: 610.00g
200mm Movement Tie with Sleeve - pack of 10
Length: 200mm
Width: 19mm
Weight: 610g
200mm Movement Ties are designed to provide restraint in one direction and movement to allow for horizontal expansion and contraction. The Debonding Sleeve is located over the embedment detail to allow the tie to move. Typical usages are in areas where masonry is restrained to Steelwork columns and in long spans of brickwork where movement joints are required. 200mm ties can also be ordered without a sleeve.
Features
- Movement Ties come complete with sleeve.
- Additional sleeves available to order.
Specification
- Grade 1.4301 austenitic stainless steel to EN 10088-2.
Installation
- These products are designed to provide restraint in one direction and movement to allow for horizontal expansion and contraction. The Debonding Sleeve is located over the embedment detail to allow the tie to move
