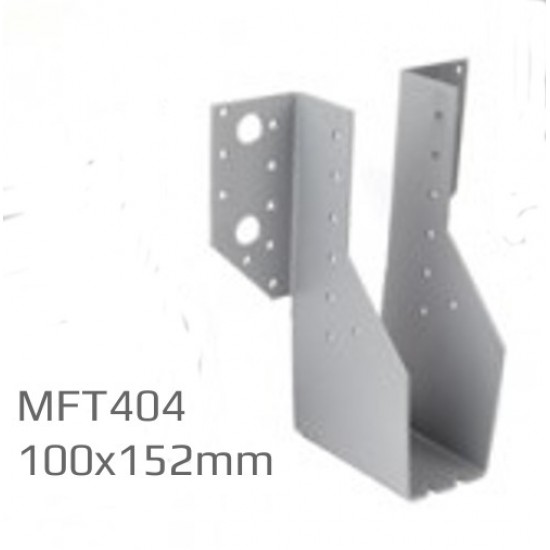

100x152mm Multifunctional Joist Hanger
100x152mm Multifunctional Joist Hanger
Price: £2.58 (£3.10 inc VAT)
- Product Code: A1-5268
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: MFT100/404BA - 100x152
- Weight: 501.00g
100x152mm Multifunctional Joist Hanger
Width: 100mm
Height: 152mm
Thickness: 2mm
Weight: 501g
100mm x 152mm Multifunctional Joist Hanger 100 x 152mm is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 x nail or screws. It can bolted, screwed, coach screwed or nailed. Long term safe working load = 8.25 kN.
FIXING INSTRUCTIONS for 100x152mm Multifunctional Joist Hanger
- It is advisable that 30 x 3.75 Square Twisted nails are used for nailing the holes during installation.
- The hanger should be a minimum of over half (60%) the depth of the supported member to avoid rotation.
SPECIFICATION
- Location tabs aid fast accurate alignment of the hanger.
- M12 bolt holes.
- 85mm bearing.
- Also available in Stainless Steel.
- Tested by Ceram Research.
Face-Fix-Hangers_data_sheet.pdf
Brand: TECO
Model and Size: AB150/90
Delivery Time: In stock, 1-2 days
150x90mm Heavy duty angle bracket is a versatile, general purpose 90-degree bracket used to strengthen timer joists, roof trusses etc. SpecificationPre Galvanised Mild Steel SD280GD+Z275Fixing InstructionsThe TECO Angle Bracket is the ultimate angle cleat using either Bolts, C..
£1.40
£1.68 inc VAT
Brand: TECO
Model and Size: GTS - 50x300
Delivery Time: In stock, 1-2 days
50mm x 300mm Girder Truss Shoe is especially designed for supporting trussed rafters. The hanger is produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. The hanger includes a base tag which can significan..
£2.24
£2.69 inc VAT
Brand: TECO
Model and Size: FFCS200
Delivery Time: In stock, 1-2 days
150mm Stainless Steel Frame Cramp is traditionally used for fixing wooden door and window frames into block work. Frame Cramps can also be used for restraining masonry to new and existing structures in non-structural applications and can easily be shot fired into steel work. Available in G..
£0.98
£1.18 inc VAT
Brand: TECO
Model and Size: H6/1000
Delivery Time: In stock, 1-2 days
6mm Helical Bar is used in a variety of applications; in general the metre lengths are used for crack stitching and reinforcing masonry in both new and existing masonry structures. The deformation of the fins makes the bonding characteristics of the Helical Bar far superior to alternative standard r..
£87.71
£105.25 inc VAT
Guide Price
Brand: TECO
Model and Size: TSP 102mm
Delivery Time: 2 - 3 weeks
Use: For 102mm Shear PlatesWeight: 2403grShear Plate 102mm Grooving and Dapping Tool is designed to ease the installation process of the 102mm shear plate connectors. This tool can be combined with portable drill presses and drills when the connectors are the same shape and ..
Guide Price: £801.20
£961.44 inc VAT
Brand: TECO
Model and Size: MFT90/504BA - 90x207
Delivery Time: In stock, 1-2 days
90mm x 207mm Multifunctional Joist Hanger is a Face Fix Joist Hanger, produced from 2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It is especially designed for timber to masonry and timber to timber fixings. It inclu..
£3.05
£3.66 inc VAT
