100mm Single Piece Masonry Hanger Lock Plate

100mm Single Piece Masonry Hanger Lock Plate
100mm Single Piece Masonry Hanger Lock Plate
Price: £0.74 (£0.89 inc VAT)
  • Product Code: A1-5284
  • Delivery Time: 2 - 4 days
  • Brand: TECO
  • Model and Size: FHMR100
  • Weight: 72.00g
Show other widths

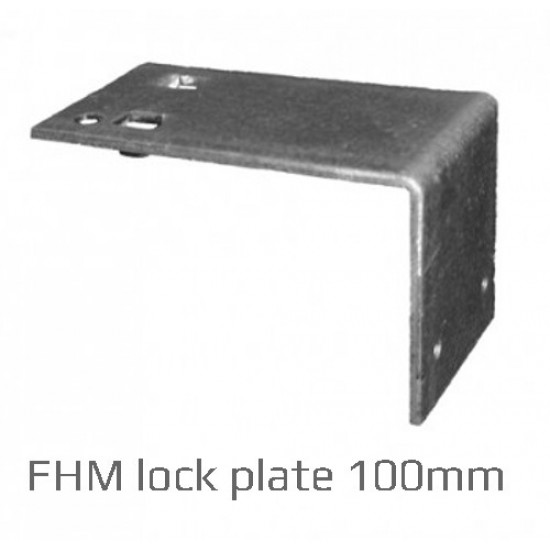

100mm Single Piece Masonry Hanger Lock Plate

Width: 100mm
Thickness: 2.5mm
Weight: 72g

Single Piece Masonry Hanger Lock Plate is an additional element to use with the FHM Single Piece Joist Hanger and the WM Welded Masonry Joist Hanger. This plate is easily be transformed into a hook over joist hanger. No special tools or rivets are required. Just insert Lock Plate at 90, rotate and tap into place

SPECIFICATION

The lock plate is produced from pre-galvanised steel, S280GD+Z275.

Note: Joist hanger is not included.

Brand: TECO Model and Size: WM44x250
Delivery Time: 2 - 4 days
44mm x 250mm Welded Masonry Joist Hanger is designed to support 250mm high timber joist. The joist hanger's actual height is 240mm, and the flange is built into brick or block wall. It has a minimum crushing strength of 3.5N/mm. Welded Masonry Joist Hanger is also suitable for many timber to ti..
£4.26
£5.11 inc VAT
Add to Cart
Brand: TECO Model and Size: ERSG3
Delivery Time: In stock, 1-2 days
Galvanised External Render Stop Bead is predominantly used to form a neat bell shaped edge at the bottom of an external render finish, thus protecting the edge and acting as a runoff for when rainfall occurs. Use on traditional wet 2 or 3 coat plaster application. Galvanised product to be used ..
£2.53
£3.04 inc VAT
Add to Cart
Brand: TECO Model and Size: FHMR47X175R150
Delivery Time: In stock, 1-2 days
Masonry Return Joist Hanger is designed for similar applications and installation as the standard Masonry Joist Hanger. The return adds additional lateral support by wrapping around the back of the masonry or timber. The hanger has a 25mm drop on the return flange as standard. Any variatio..
£4.05
£4.86 inc VAT
Add to Cart
Brand: TECO Model and Size: FFCPG200
Delivery Time: In stock, 1-2 days
150mm Galvanised Fishtailed Frame Cramp is traditionally used for fixing wooden door and window frames into block work. Frame Cramps can also be used for restraining masonry to new and existing structures in non-structural applications and can easily be shot fired into steel work. Available in ..
£0.40
£0.48 inc VAT
Add to Cart
Brand: TECO Model and Size: WM100x100
Delivery Time: 2 - 4 days
100mm x100mm Welded Masonry Joist Hanger is designed to support timber joists built in to brick or block walls with a minimum crushing strength of 3.5N/mm. It is also suitable for many timber to timber and for timber to steel applications. The masonry flange should be securely fixed to the timb..
£4.33
£5.20 inc VAT
Add to Cart
Brand: TECO Model and Size: MFM - 44x98
Delivery Time: In stock, 1-2 days
44mm x 98mm Multifunctional Mini Joist Hanger is a Face Fix Joist Hanger, produced from 1.2mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. It includes base location tabs and a corresponding hole pattern of 2 x M12 bolt holes, 19 ..
£1.73
£2.08 inc VAT
Add to Cart
