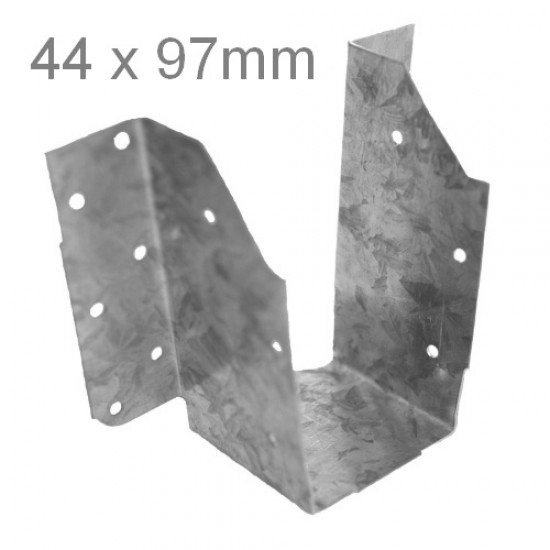

44x97mm Woody Mini Joist Hanger

44x97mm Woody Mini Joist Hanger
44x97mm Woody Mini Joist Hanger
Price: £0.58 (£0.70 inc VAT)
  • Product Code: A1-11
  • Delivery Time: In stock, 1-2 days
  • Brand: TECO
  • Model and Size: MINI - 44x97
  • Weight: 122.00g
Show other sizes

44x97mm Timber to Timber Woody Mini Joist Hanger

Width: 44mm
Height: 97mm
Thickness: 1mm
Weight: 122g

44x97mm Woody Mini Joist Hanger is produced from 1mm thick pre-galvanised mild steel in accordance with the specification given in the BS EN 10327:2004 DX51D+Z275. Also available in stainless steel. The hanger includes a base tag that can significantly contribute to faster and more accurate installation This base tag would help to avoid unnecessary rotation. The product offers substantial safe working load of 5.25kN at 1.5mm deflection, meaning that there is no fear of the hanger breaking if the given load and strength characteristic of 12.5kN are respected. Long term safe working load = 3.96 kN.



FIXING INSTRUCTIONS of 44x97mm Timber to Timber Woody Mini Joist Hanger

  • All holes should be nailed using 30 x 3.75 square twist nails or equivalent.
  • For stainless steel products use 30 x 3.75 stainless steel annular ring shank nails.

SPECIFICATION

  • Woody Mini Joist Hangers have been tested by Ceram Research. The test results are available upon request.
