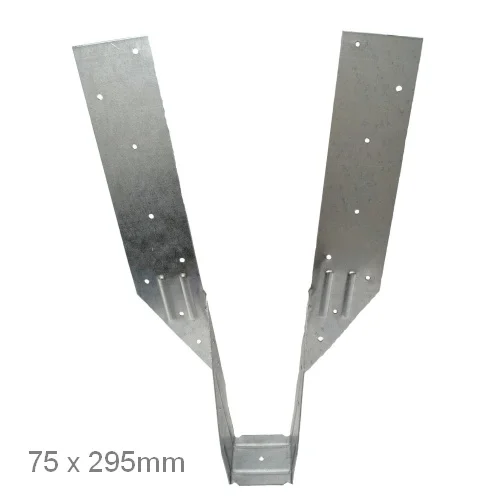

75x295 Woody No Tag Joist Hanger
75x295 Woody No Tag Joist Hanger
Price: £0.60 (£0.72 inc VAT)
- Product Code: A1-5035
- Delivery Time: In stock, 1-2 days
- Brand: TECO
- Model and Size: WNT - 75x295
- Weight: 192.00g
75x295 Woody No Tag Joist Hanger
Width: 75mm
Height: 295mm
Thickness: 0.8mm
Weight: 192g
75mm x 295mm Woody No Tag Joist Hanger is produced from 0.8mm thick pre-galvanised mild steel in accordance with the BS EN 10327:2004 DX51D+Z275 specifications. The hangers have been accordingly tested by Ceram Research, whereas the test results are available upon request. Also available in Stainless Steel. Long term safe working load = 6 kN.
tag_install.png)
FIXING INSTRUCTIONS for 75x295 Woody No Tag Joist Hanger
- All holes should be nailed using 30 x 3.75 square twist nails or equivalent, for stainless steel products use 30 x 3.75 stainless steel annular ring shank nails.Always ensure that compatible corrosion resistant fixings are used, i.e. do not use galvanised fixings with stainless steel products or vice versa.
SPECIFICATION
- Joist bearing 60mm,
- Also available in Stainless Steel,
- Tested by Ceram Research.
Timber-to-Timber-Joist-Hangers.pdf
